JASCO | Temperature Control - Kinetics

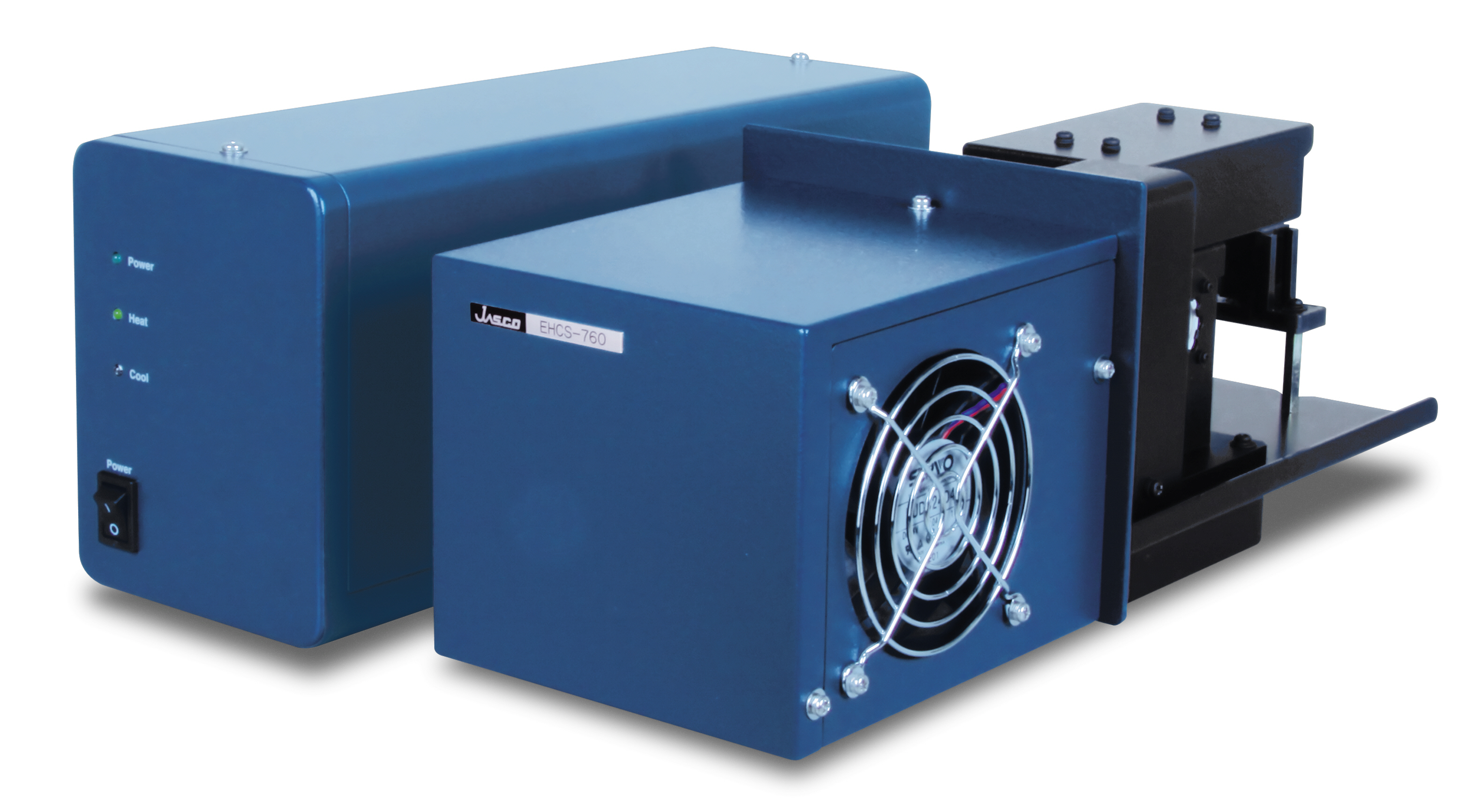

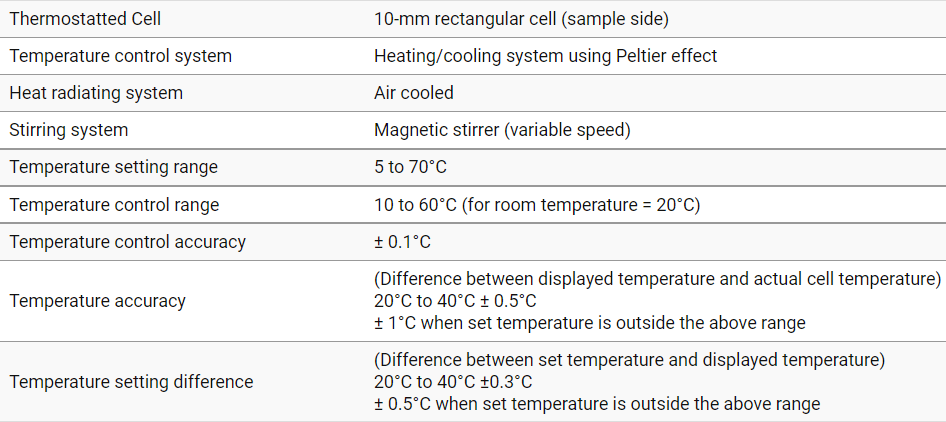

1. EHCS-760 Peltier Single Position Cell Holder (Air-Cooled)



This Peltier cell holder precisely maintains a specified sample temperature and can perform thermal ramping experiments up to 60°C A stirrer is included for uniform cell temperature.

Air-cooled for temperature control (does not require a water circulator).



· OPS-512 Optional Temperature Sensor → PS-512 OP sensor for direct temperature measurement in the sample cell.





· Specifications

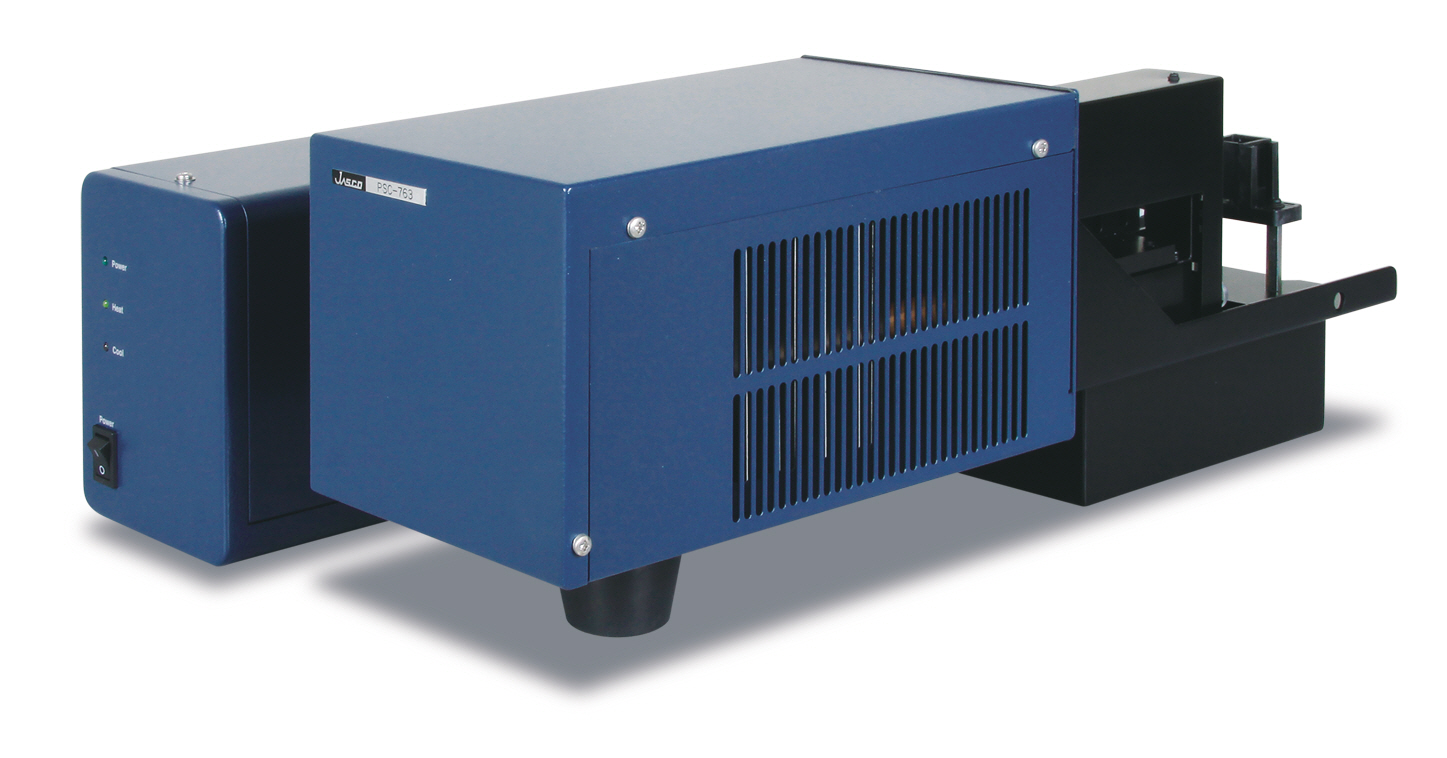

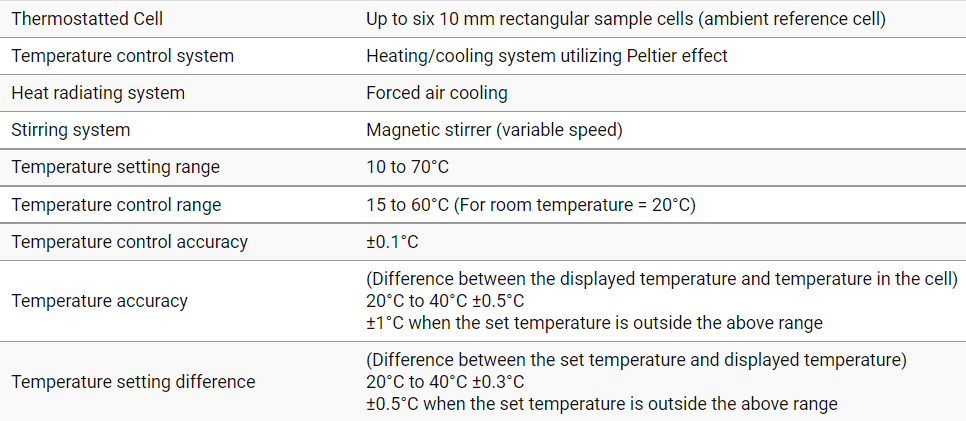

2. PSC-761/763 Automatic 6-position Peltier Cell Changer (Air-Cooled)



Multi-cell accessory for simultaneous temperature controlled measurement in up to 6 sample cells.

Air-cooled Peltier effect to control sample temperature and ramping with high accuracy. Includes stirrer.



· OPS-512 Optional Temperature Sensor → OPS-513 OP sensor for direct temperature measurement in the sample cell.







 · Specifications

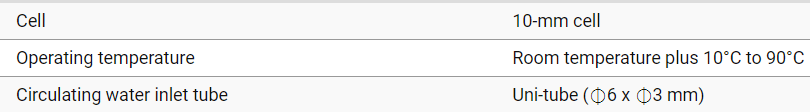

3. STR-773 Water Thermostatted Cell Holder with Stirrer



Used with a temperature controlled circulating water bath (not supplied) to maintain a constant sample and reference cell temperature.

The STR-773 accepts standard 10 mm path length cells. A magnetic stirrer is included to maintain temperature equilibrium in both cell positions.

· Specifications

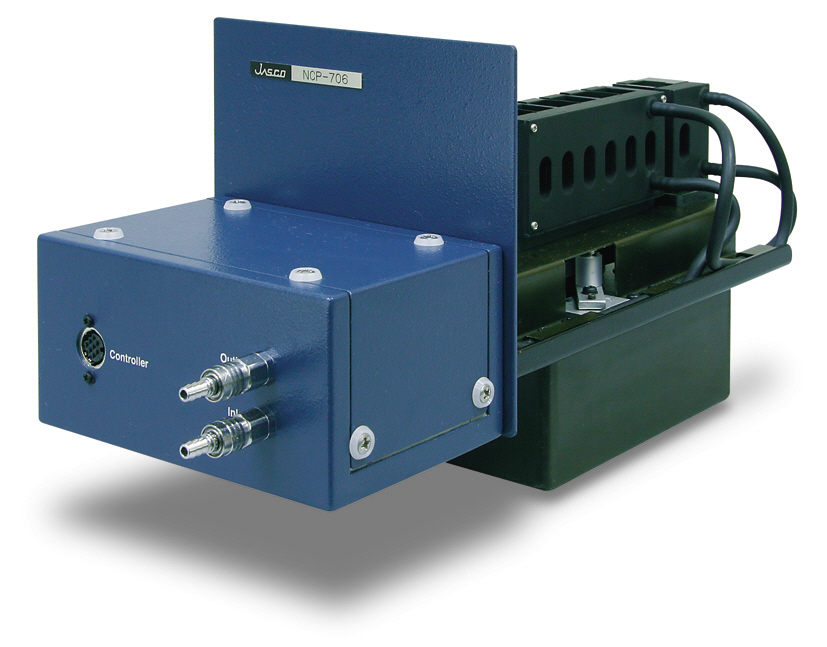

4. NCP-706 Water Thermostatted 6-position Automatic Cell Changer



Automatic 6-position cell changer for up to 6 cell positions (path lengths up to 10 mm). Single reference position.

Temperature is controlled using a water-thermostatted circulator (not included).

· Specifications

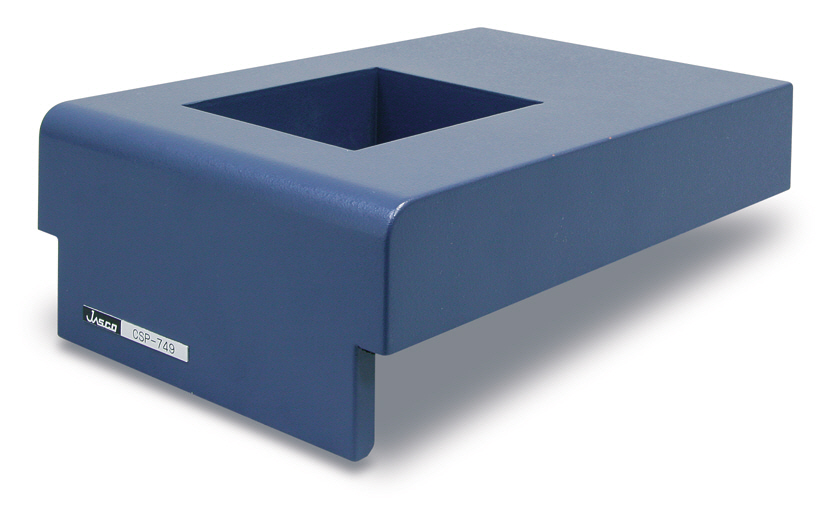

5. CSP-909 Sample Holder Lid with Syringe Port Models





Optional lid used for adding a reagent with a syringe without opening the sample chamber for starting fast reactions without a delay in measurement.

The syringe port lid can be used with any single cell holders.



· Specifications

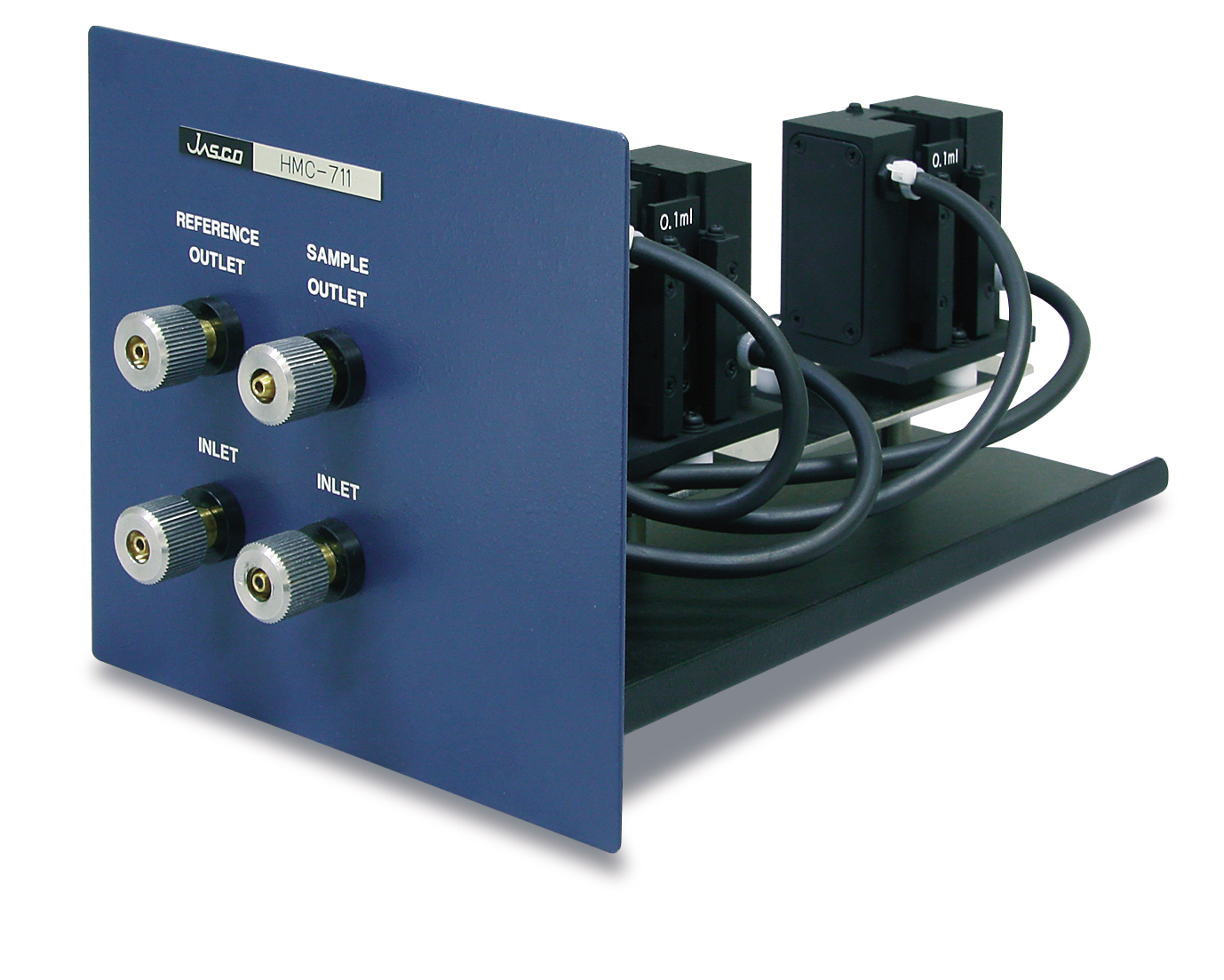

6. HMC-711 Water Thermostatted Micro Cell Holder



Constant temperature single cell holder for micro cells. (Sample volume 100 µL, 200 µL) Accepts standard 10 mm path length cells with a minimum width of 2 or 4 mm.

Used with a temperature controlled circulating water bath (not included).



· Specifications

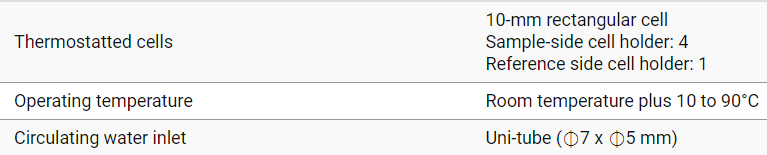

7. MHT-745 Manual 4-Position Water Thermostatted Cell Holder



4-position turret cell holder can be rotated manually for measurement of up to four cells. Requires four 10x10 mm rectangular cells (not included).

Requires a temperature controlled circulating water bath (not included)



· Specifications
