Product

[PL] Fluorescence Spectrophotometers

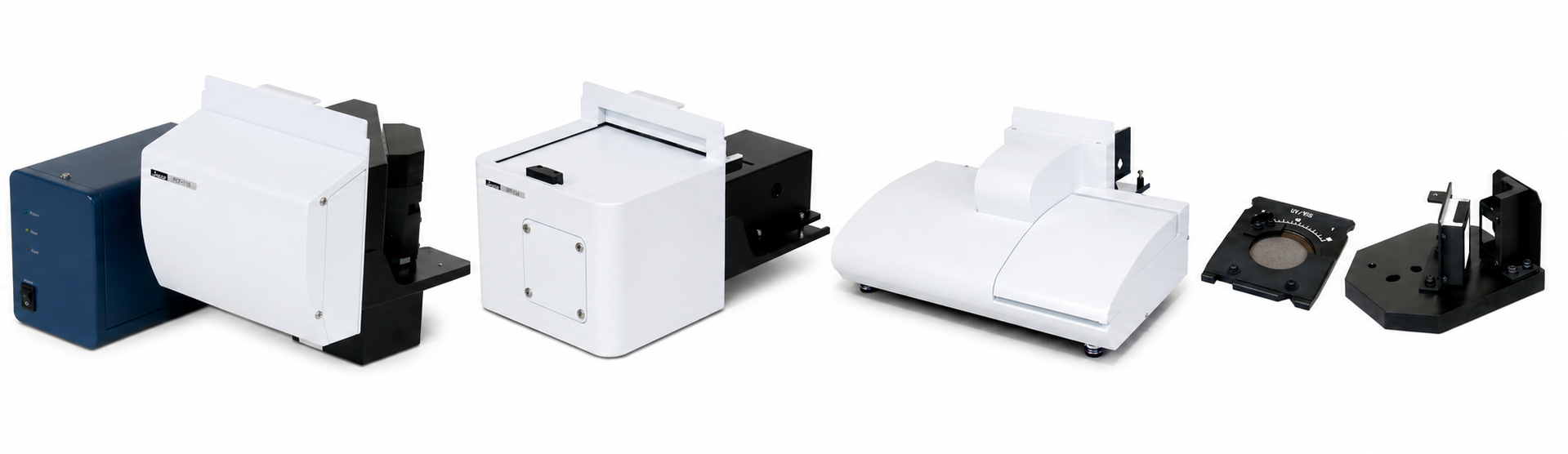

FP-8050 series Fluorometers

The FP-8050 Series of spectrofluorometers includes four different instruments that provide solutions for the broadest range of applications including QC, biomolecular structural studies, environmental monitoring and advanced materials science.
The FP-8050 Series has many flexible options for academic or industrial research, teaching, or use in quality control labs. Users can have the greatest confidence in their measurements, with an optical bench specifically designed for the highest sensitivity, widest dynamic range, and exceptional spectral purity with automatic cut-off filters to exclude higher order diffraction.


The FP-8050 Series combines a compact design with the largest range of accessories together with Spectra Manager™ Suite, a comprehensive data platform that gives you complete control over measurement, analysis and data archiving. In addition to the standard analysis programs, JASCO has developed many different applications software for dedicated sample measurement.

Product Specification

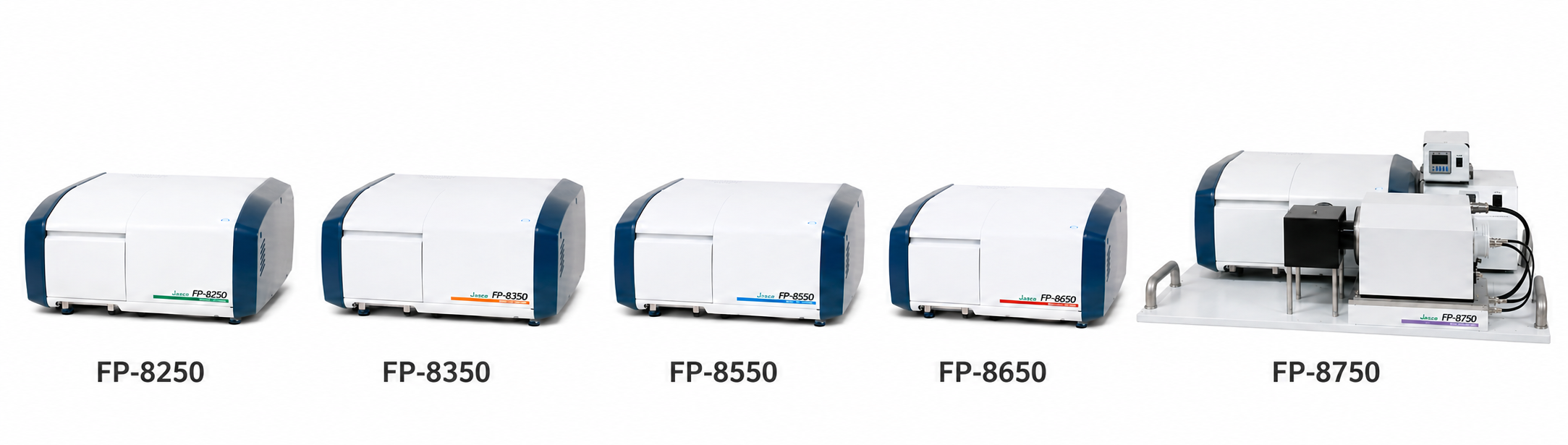

FP-8050 series

FP-8250 : Simple and sensitive system which readily accommodates routine measurements and accessories, such as spectral scanning, quantitation, and temperature control.

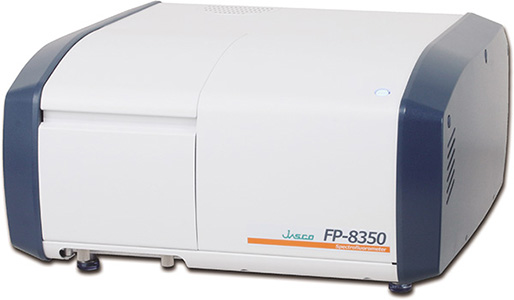

FP-8350 : A powerful combination of performance, sensitivity and flexibility for biological, environmental and materials analysis.

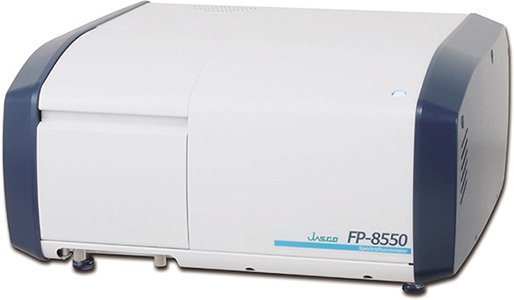

FP-8550 : Sophisticated optical system offering the ultimate in sensitivity, spectral accuracy, and flexibility for the most challenging materials and biological samples.

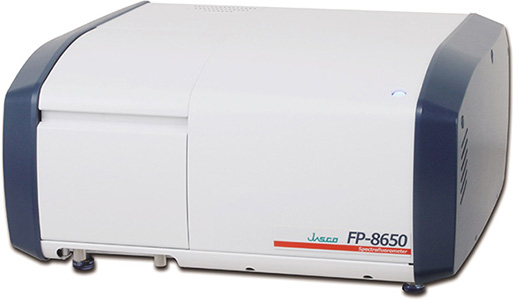

FP-8650 : Uniquely optimized for NIR applications with extended wavelength measurement to 1010 nm.

FP-8750 : by adopting a cooled photomultiplier tube with sensitivity up to 1700 nm, it is possible to measure fluorescence above 1000 nm with high sensitivity, which was difficult until now.

자세한 건 Model 카테고리를 참고해주세요.[Click here]

If you want to watch PLQY(Photo Luminescence Quantum Yield), watch more than 8550 models. (With Intergrating Spheres)

자세한 건 Accessories 카테고리를 참고해주세요.[Click here]



System Features

Advanced Features of the FP-8050 Series
  • High-throughput optical system
  • Highest S/N performance
  • Wide dynamic range (up to 7 orders of magnitude*)
  • Auto Gain and Auto Sensitivity Control System
  • Automatic cut-off filters for higher-order diffraction
  • Advanced digital signal processing
  • High speed scanning
  • Spectral bandwidth down to 1 nm
Extensive Breadth of Features and Accessories
  • Compact benchtop footprint
  • Precision temperature control accessories for liquids and solids
  • Polarizers allow for automatic anisotropy measurements
  • Integrating spheres for Quantum Yield Determination
  • Microplate Reader for rapid sample throughput
  • Microsampling accessories for small volume samples
  • Stopped-flow systems for monitoring fast kinetics
  • Spectra Manager™ software for control and data analysis
  • Flexible design for expanding capabilities as needs evolve
Versatility for a Wide Range of Applications
  • Protein dynamics
  • Quantitative analysis
  • Cellular membrane studies
  • Enzyme kinetics
  • Water quality monitoring
  • Quantum dot and probe design
  • Carbon nanostructures and 2D materials
  • Fluorescent tracking materials
  • Short lifetime phosphorescence and PHOLEDs
