[CD] Circular Dichroism
[CD]Temperature control
1. PTC-510, 514, 517 | Single-position Peltier cell holders
Three single-position Peltier thermostatted cell holders are available with a maximum light path length of 10 mm, to enable temperature control using the temperature control program.
All feature a temperature setting range of -30 to 130°C with a measurement probe that can be placed inside or adjacent to cell and a magnetic stirrer to eliminate thermal gradients.
• PTC-517 Single-position Peltier for J-1500 and J-1700 for use with rectanguiar cells up to 10 mm.
• PTC-514 Single-position Peltier for J-1100 for use with rectangular cells up to 10 mm.
• PTC-510 Single-position Peltier for J-1500 and J-1700 for use with rectangular and cylindrical cells up to 10 mm.

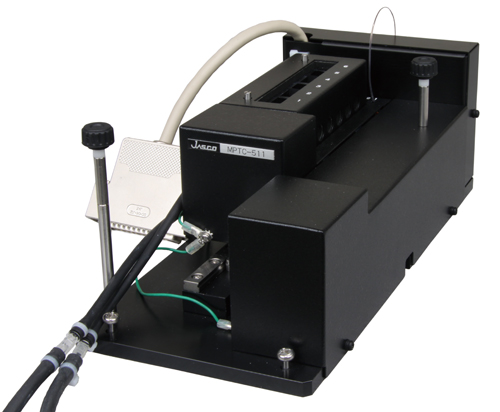

2. MPTC-511, 513 | Multiple-position Peltier cell changers
The MPTC accessories are designed to enable high sample throughput and productivity. The six-position holder for rectangular cells allows automated spectral scans and parallel thermal ramps on up to six samples at a time.
Applicable measurement modes include spectral scans, thermal ramping at single or multiple wavelengths, and thermal rampling with spectral scans at preset temperatures.
• Temperature setting range of -30 to 130°C
• Temperature sensors for each cell
• Magnetic stirrers for each cell to eliminate thermal gradient

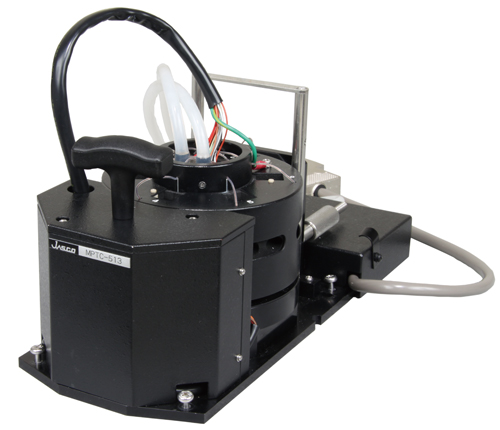

*The MPTC-513 system is compatible with optional fluorescence modes including total fluorescence, scanning excitation/emission fluorescence (FMO-522) accessory and fluorescence polarization/ anisotropy.
